Findings

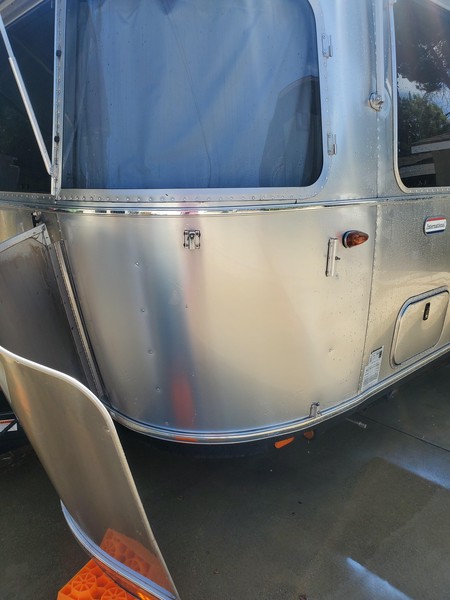

Upon cleaning of Olive I noticed the rock guard bracket on the driver side was not functioning properly.

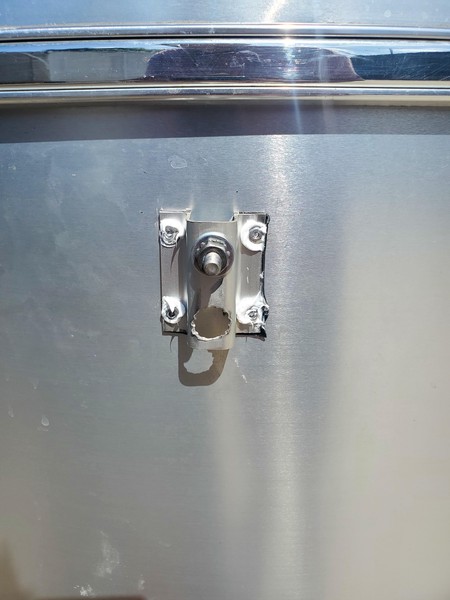

The bolt on the front of the panel was spinning freely. Upon inspection I notice the bolt and nut had pulled through.
PulledThrough The engineering on this bracket (most likely by accident) shows that it can be flipped over and a new hole drilled. In order to remove, I will need to drill the current rivets, clean up the adhesion points, drill the bracket, then reinstall.

August 2023

Removal

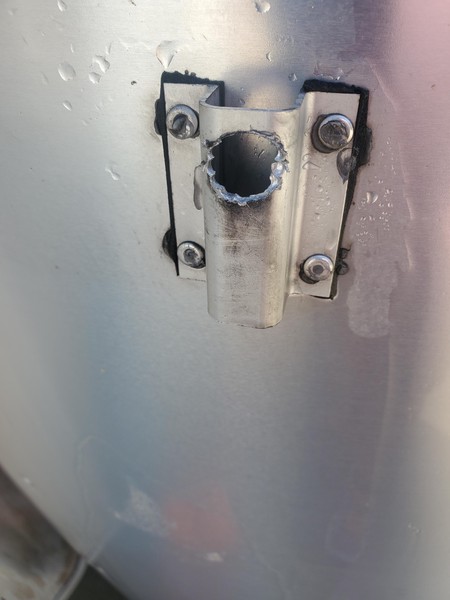

Bracket Close up

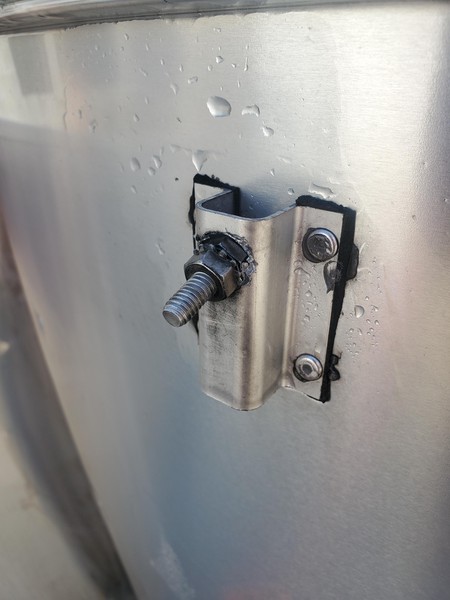

Cleanup and Drill

Cleanup and Drill

Install new Adhesion with 3M VHB

VHB

Install new bracket upside down

Flip Me over

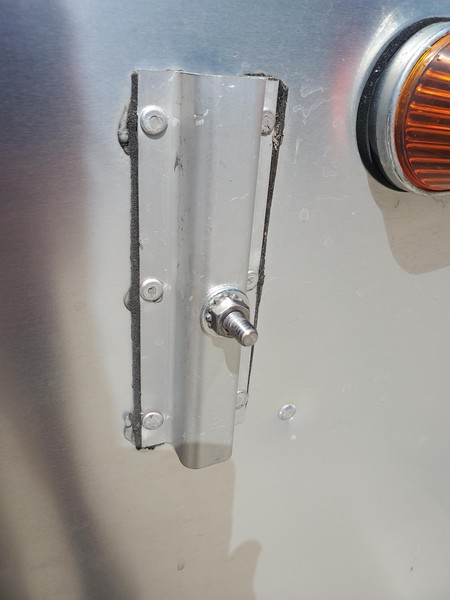

Install washer on other mount points

washer install

Installed and sealed

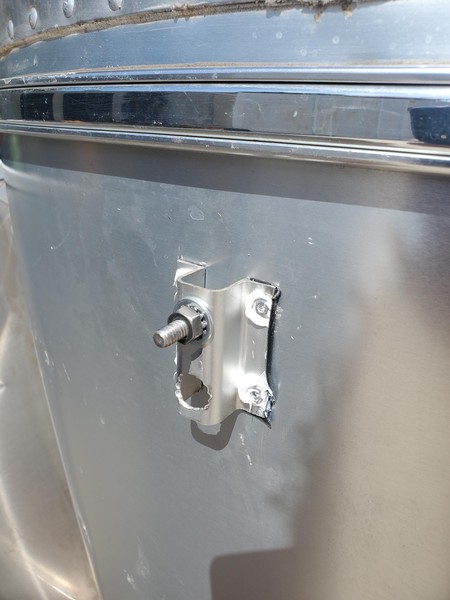

installed

All wrapped up

All Done

Notes

My current thinking is that the bracket needs an additional washer to keep from pulling through. I added one on each side in the middle.
